Pressure Boosting Pumps FH17

Pressure Boosting Pumps
series TH and FH use closed impellers in order to minimize power consumption and to optimize hydraulic pump efficiencies.
In addition, the TH series offers high pressures at short immersion depths.
Inline pumps of the series FH can be used as boosting pumps if provided with positive inlet pressure. This inlet pressure can be provided by the central coolant supply or a feed pump. In such a setup, pumps of the series FH can raise the incoming pressure by up to 26 bar.
A frequency converter can be supplied for special applications or for matching the pump characteristic to a specific duty point.
See page "Control/Regulation" in the Technical Information section of this catalog for further information.



Closed impellers

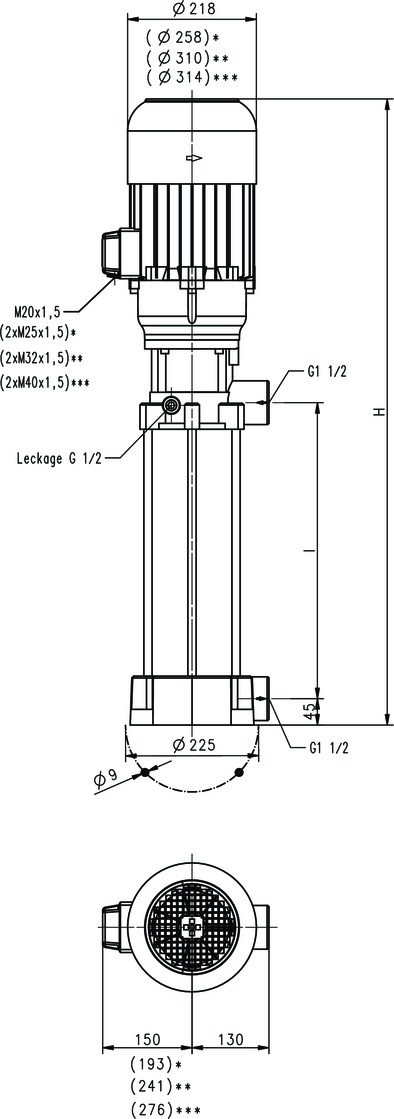

Technical drawing


FH17

Pressure Boosting Pumps - FH17



FH1702...1711
*) Dimensions for FH1704...1705**) Dimensions for FH1706...1708***) Dimensions for FH1709...1711


Pump characteristic


yaxis FH17
xaxis

Pressure Boosting Pumps - FH17

yaxis FH17
xaxis

Applications

Types of fluidIndustrial water
coolants
cooling/cutting oils
Kinematic viscosity...25 mm²/s (25 cSt)
Pumping temperature0...80° C

Construction











Pump bodycast iron
Covercast iron
ImpellersCrNi-steel
ShaftCrNi-steel
DiffusersCrNi-steel
Mechanical sealSiC
O-ringsViton
Noise level 74 dBA (FH1702...FH1703B)
77 dBA (FH1704...FH1705B)
79 dBA (FH1706...FH1708B)
81 dBA (FH1709...FH1711B)


Type Vol. del.
at manom.
del. head
Height Length Weight
  Power Voltage
3 ~
Fre-
quen-
cy
Current Speed
l/min /m H mm l mm kg kW V Hz A 1/min
FH1702B18    cad 300/37 741 212 60.0 3.8 460 60
6.4
3520
FH1703B28    cad 300/58 867 308 66.0 5.75 460 60
9.5
3520
FH1704B28    cad 300/80 943 308 91.0 8.6 460 60
13.7
3550
FH1705B38    cad 300/99 1040 404 120.0 10.3 460 60
15.8
3550
FH1706B38    cad 300/118 1048 404 123.0 12.6 460 60
19.5
3560
FH1707B47    cad 300/140 1144 500 126.0 15.0 460 60
23.6
3560
FH1708B47    cad 300/160     128.0


FH1709B57    cad 300/180 1545 596 154.0 17.3 460 60
27
3555
FH1710B57    cad 300/200 1594 596 173.0 21.3 460 60
32
3555
FH1711B66    cad 300/219 1690 692 175.0
