Quick Suctioning Immersion Pumps SZG701...1002
Quick Suctioning Immersion Pumps
series SZG equipped with the patented "BRINKMANN`s Suction De-aeration System" are excellently suited to pumping fluids (grinding oils) with very high air entrainment as they occur in high-speed grinding.
The quick suctioning immersion pumps reach stable working conditions as soon as the liquid level reaches the suction inlet.
The SZG serie offers a flange with pressure gauge connection port.
The flange can be rotated for either horizontal or vertical pipe connections.
Axial/open impellers
Technical drawing

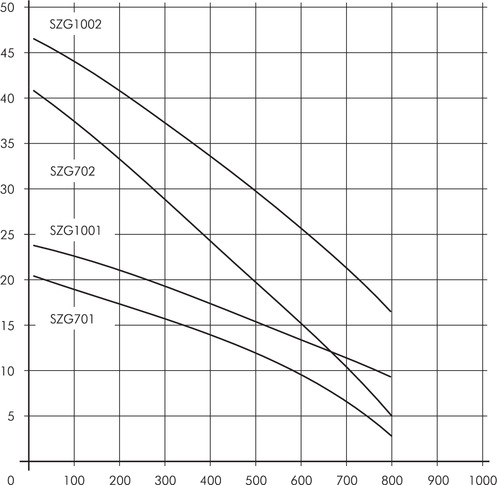

Quick Suctioning Immersion Pumps - SZG701...1002
SZG701...1002
Applications
| Types of fluid | grinding oils cooling/cutting oils coolants |
| Kinematic viscosity | ...45 mm²/s (45 cSt) |
| Pumping temperature | 0...80° C |
Construction
| Pump body | cast iron |
| Cover | cast iron |
| Impeller axial | cast steel |
| Impeller radial | cast steel |
| Shaft | steel |
| Type | Vol. del. at manom. del. head |
Height | Depth of im- mersion |
Weight |
Power | Voltage 3 ~ |
Fre- quen- cy |
Current | Speed | ||||||||
| l/min /m | H mm | h mm | kg | kW | V | Hz | A | 1/min | |||||||||
SZG701/220  |
300/15 | 503 | 220 | 66.0 | 3.3 | 220-240 | 50 |
|
2930 | ||||||||
| 320 |
320 | 69.0 | 380-415 | 50 |
|
2930 | |||||||||||
| 450 |
450 | 73.0 |
|
||||||||||||||
| 570 |
570 | 77.0 | 3.8 | 460 | 60 |
|
3520 | ||||||||||
| 770 |
770 | 89.0 |
|
||||||||||||||
| 1000 |
1000 | 95.0 |
|
||||||||||||||
| SZG1001/220 |
500/15 | 533 | 220 | 73.0 | 5.0 | 220-240 | 50 |
|
2920 | ||||||||
| 320 |
320 | 76.0 | 380-415 | 50 |
|
2920 | |||||||||||
| 450 |
450 | 80.0 |
|
||||||||||||||
| 570 |
570 | 84.0 | 5.75 | 460 | 60 |
|
3520 | ||||||||||
| 770 |
770 | 96.0 |
|
||||||||||||||
| 1000 |
1000 | 102.0 |
|
||||||||||||||
| SZG702/290 |
300/29 | 612 | 290 | 112.0 | 7.5 | 380-415 | 50 |
|
2950 | ||||||||
| 390 |
390 | 116.0 |
|
||||||||||||||
| 520 |
520 | 119.0 | 8.6 | 460 | 60 |
|
3550 | ||||||||||
| 640 |
640 | 122.0 |
|
||||||||||||||
| 840 |
840 | 141.0 |
|
||||||||||||||
| 1070 |
1070 | 147.0 |
|
||||||||||||||
| SZG1002/290 |
500/30 | 612 | 290 | 119.0 | 9.0 | 380-415 | 50 |
|
2955 | ||||||||
| 390 |
390 | 122.0 |
|
||||||||||||||
| 520 |
520 | 126.0 | 10.3 | 460 | 60 |
|
3550 | ||||||||||
| 640 |
640 | 130.0 |
|
||||||||||||||
| 840 |
840 | 142.0 |
|
||||||||||||||
| 1070 |
1070 | 149.0 |
|
||||||||||||||
