Quick Suctioning Immersion Pumps SGL1101...1103
Quick Suctioning Immersion Pumps
series SGL equipped with the patented "BRINKMANN`s Suction De-aeration System" are excellently suited to pumping extremely air entrained fluids (grinding oils) as they occur in high-speed grinding.
The quick suctioning immersion pumps reach stable working conditions as soon as the liquid level reaches the suction inlet.
The SGL serie offers a flange with pressure gauge connection port.
The flange can be rotated for either horizontal or vertical pipe connections.
Axial/semi-open impellers

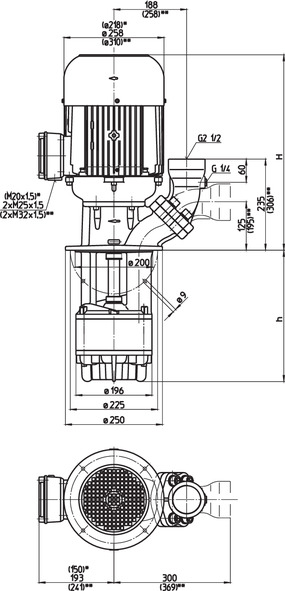

Technical drawing

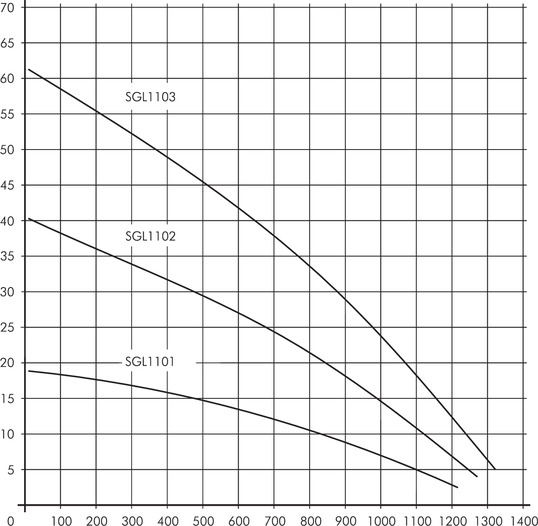

Quick Suctioning Immersion Pumps - SGL1101...1103
SGL1101, 1102
SGL1103
Applications
| Types of fluid | coolants cooling/cutting oils grinding oils |
| Kinematic viscosity | ...45 mm²/s (45 cSt) |
| Pumping temperature | 0...80° C |
Construction
| Pump body | cast iron |
| Cover | cast iron |
| Impeller axial | cast steel |
| Impeller radial | cast steel |
| Shaft | steel |
| Type | Vol. del. at manom. del. head |
Height | Depth of im- mersion |
Weight |
Power | Voltage 3 ~ |
Fre- quen- cy |
Current | Speed | ||||||||
| l/min /m | H mm | h mm | kg | kW | V | Hz | A | 1/min | |||||||||
SGL1101/230  |
900/10 | 533 | 230 | 69.0 | 5.0 | 220-240 | 50 |
|
2920 | ||||||||
| 330 |
330 | 72.0 | 380-415 | 50 |
|
2920 | |||||||||||
| 460 |
460 | 76.0 |
|
||||||||||||||
| 580 |
580 | 81.0 | 5.75 | 460 | 60 |
|
3520 | ||||||||||
| 780 |
780 | 91.0 |
|
||||||||||||||
| 1010 |
1010 | 98.0 |
|
||||||||||||||
| SGL1102/310 |
900/21 | 612 | 310 | 108.0 | 9.0 | 380-415 | 50 |
|
2955 | ||||||||
| 410 |
410 | 110.0 |
|
||||||||||||||
| 540 |
540 | 113.0 | 10.3 | 460 | 60 |
|
3550 | ||||||||||
| 660 |
660 | 118.0 |
|
||||||||||||||
| 860 |
860 | 130.0 |
|
||||||||||||||
| 1090 |
1090 | 138.0 |
|
||||||||||||||
| SGL1103/390 |
900/33 | 620 | 390 | 143.0 | 13.0 | 380-415 | 50 |
|
2960 | ||||||||
| 490 |
490 | 147.0 |
|
||||||||||||||
| 620 |
620 | 151.0 | 15.0 | 460 | 60 |
|
3560 | ||||||||||
| 740 |
740 | 155.0 |
|
||||||||||||||
| 940 |
940 | 167.0 |
|
||||||||||||||
