Quick Suctioning Immersion Pumps SAL1600...2500
Quick Suctioning Immersion Pumps
equipped with the patented "BRINKMANN`s Suction De-aeration System" are excellently suited to pumping extremely air entrained fluids (emulsions resp. cooling/cutting oils) as they occur in heavy cutting when turning, milling or grinding.
The quick suctioning immersion pumps reach stable working conditions as soon as the liquid level reaches the suction inlet.
The SAL serie offers a flange with pressure gauge connection port.
The flange can be rotated for either horizontal or vertical pipe connections.
Axial/semi-open impellers

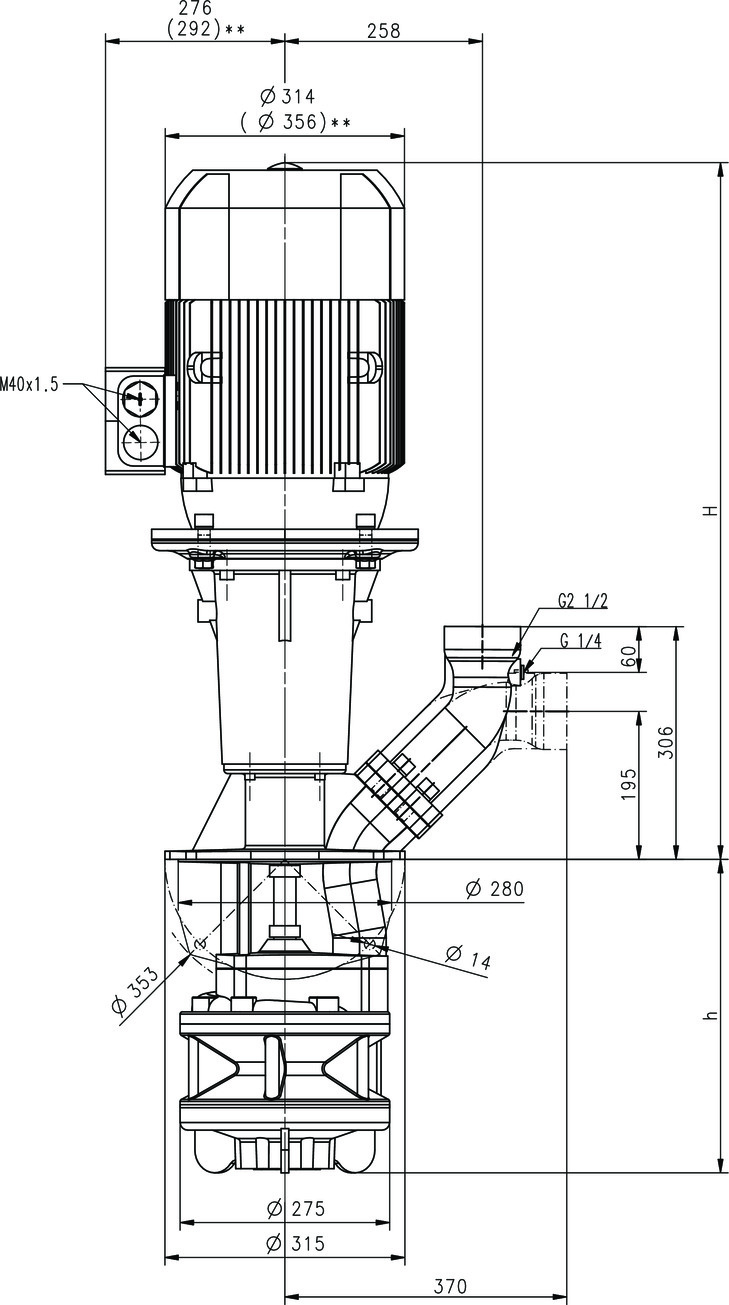

Technical drawing
Quick Suctioning Immersion Pumps - SAL1600...2500
SAL1600, 2000
SAL1602, 2500
Applications
| Types of fluid | coolants cooling/cutting oils |
| Kinematic viscosity | ...45 mm²/s (45 cSt) |
| Pumping temperature | 0...80° C |
Construction
| Pump body | cast iron |
| Cover | cast iron |
| Impeller axial | cast steel |
| Impeller radial | cast steel |
| Shaft | steel |
| Type | Vol. del. at manom. del. head |
Height | Depth of im- mersion |
Weight |
Power | Voltage 3 ~ |
Fre- quen- cy |
Current | Speed | ||||||||
| l/min /m | H mm | h mm | kg | kW | V | Hz | A | 1/min | |||||||||
SAL1600/310  |
1300/15 | 612 | 310 | 134.0 | 9 | 380-415 | 50 |
|
2955 | ||||||||
| 440 |
440 | 136.0 |
|
||||||||||||||
| 560 |
560 | 143.0 | 10.3 | 460 | 60 |
|
3550 | ||||||||||
| 810 |
810 | 160.0 |
|
||||||||||||||
| 1060 |
1060 | 170.0 |
|
||||||||||||||
| SAL2000/310 |
1600/15 | 620 | 310 | 158.0 | 11 | 380-415 | 50 |
|
2960 | ||||||||
| 440 |
440 | 160.0 |
|
||||||||||||||
| 560 |
560 | 167.0 | 12.6 | 460 | 60 |
|
3560 | ||||||||||
| 810 |
810 | 184.0 |
|
||||||||||||||
| 1060 |
1060 | 190.0 |
|
||||||||||||||
| SAL1602/420 |
1300/37 | 974 | 420 | 278.0 | 18.5 | 380-415 | 50 |
|
2947 | ||||||||
| 550 |
550 | 284.0 |
|
||||||||||||||
| 670 |
670 | 288.0 | 22 | 460 | 60 |
|
3553 | ||||||||||
| 920 |
920 | 295.0 |
|
||||||||||||||
| 1170 |
1170 | 299.0 |
|
||||||||||||||
| SAL2002/420 |
1600/45 | 978 | 420 | 332.0 | 22 | 380-415 | 50 |
|
2961 | ||||||||
| 550 |
550 | 338.0 |
|
||||||||||||||
| 670 |
670 | 342.0 | 26.4 | 460 | 60 |
|
3565 | ||||||||||
| 920 |
920 | 349.0 |
|
||||||||||||||
| 1170 |
1170 | 353.0 |
|
||||||||||||||
| SAL2500/340 |
2200/20 | 974 | 340 | 249.0 | 18.5 | 380-415 | 50 |
|
2947 | ||||||||
| 470 |
470 | 254.0 |
|
||||||||||||||
| 590 |
590 | 259.0 | 22 | 460 | 60 |
|
3553 | ||||||||||
| 840 |
840 | 276.0 |
|
||||||||||||||
| 1090 |
1090 | 279.0 |
|
||||||||||||||
