Immersion Pumps are plain centrifugal pumps with the impeller fitted on the driving shaft extension. They ...

Immersion Pumps STA1600...2500

Immersion Pumps
are plain centrifugal pumps with the impeller fitted on the driving shaft extension. They are mounted on top of the container, the pump extension being immersed in the coolant.
The maximum coolant level must stay a few mm/inches below the mounting flange.
The STA serie offers a flange with pressure gauge connection port.
The flange can be rotated for either horizontal or vertical pipe connections.



Semi-open impellers

Technical drawing


STA1600...2500

Immersion Pumps - STA1600...2500

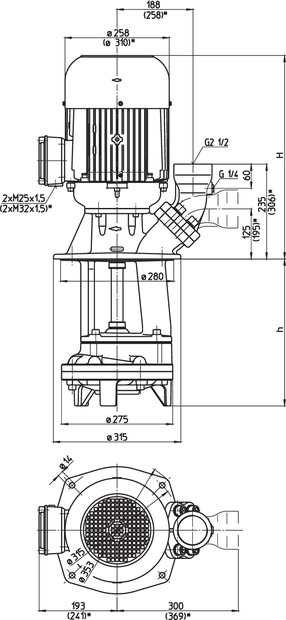

STA1600, 2000
*) Dimensions for STA2000<br>

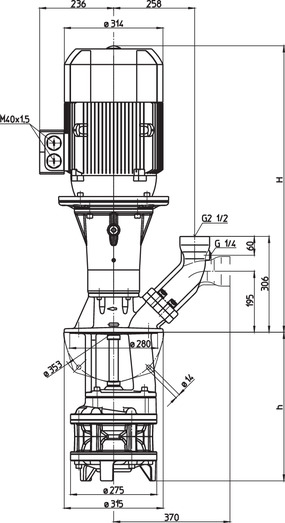

STA1602...2500
**) Dimensions for STA2002<br>

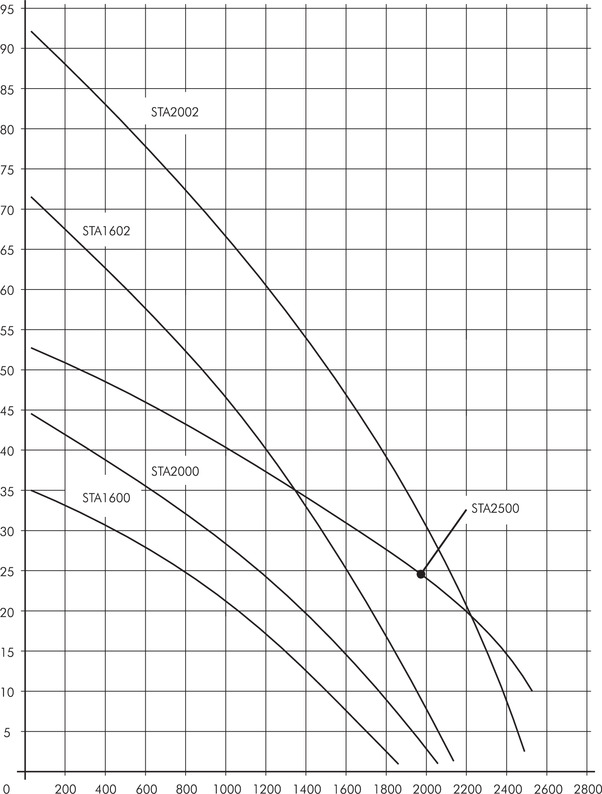

Pump characteristic


yaxis STA1600...2500
xaxis

Immersion Pumps - STA1600...2500

yaxis STA1600...2500
xaxis

Applications

Types of fluidcoolants
cooling/cutting oils
Kinematic viscosity...45 mm²/s (45 cSt)
Pumping temperature0...80° C

Construction











Pump bodycast iron
Covercast iron
Impellercast steel
Shaftsteel
Other materialson request
Noise level 74 dBA (STA1600...STA2000)
78 dBA (STA1602...STA2500)


Type Vol. del.
at manom.
del. head
Height Depth
of im-
mersion
Weight
  Power Voltage
3 ~
Fre-
quen-
cy
Current Speed
l/min /m H mm h mm kg kW V Hz A 1/min
STA1600/300    cad 1300/15 612 300 133.0 9 380-415 50
16.7
2955
430    cad     430 135.0


550    cad     550 142.0 10.3 460 60
15.8
3550
800    cad     800 159.0


1050    cad     1050 169.0


STA2000/300    cad 1600/15 620 300 157.0 11 380-415 50
20.1
2960
430    cad     430 159.0


550    cad     550 166.0 12.6 460 60
19.5
3560
800    cad     800 183.0


1050    cad     1050 186.0


STA1602/410    cad 1300/37 974 410 277.0 18.5 380-415 50
33.9
2947
540    cad     540 283.0


660    cad     660 287.0 22 460 60
33.4
3553
910    cad     910 294.0


1160    cad     1160 298.0


STA2002/410    cad 1600/47 978 410 331.0 22 380-415 50
40
2961
540    cad     540 337.0


660    cad     660 341.0 26.4 460 60
39.7
3565
910    cad     910 348.0


1160    cad     1160 352.0


STA2500/330    cad 2200/20 974 330 248.0 18.5 380-415 50
33.9
2947
460    cad     460 253.0


580    cad     580 258.0 22 460 60
33.4
3553
830    cad     830 275.0


1080    cad     1080 278.0
